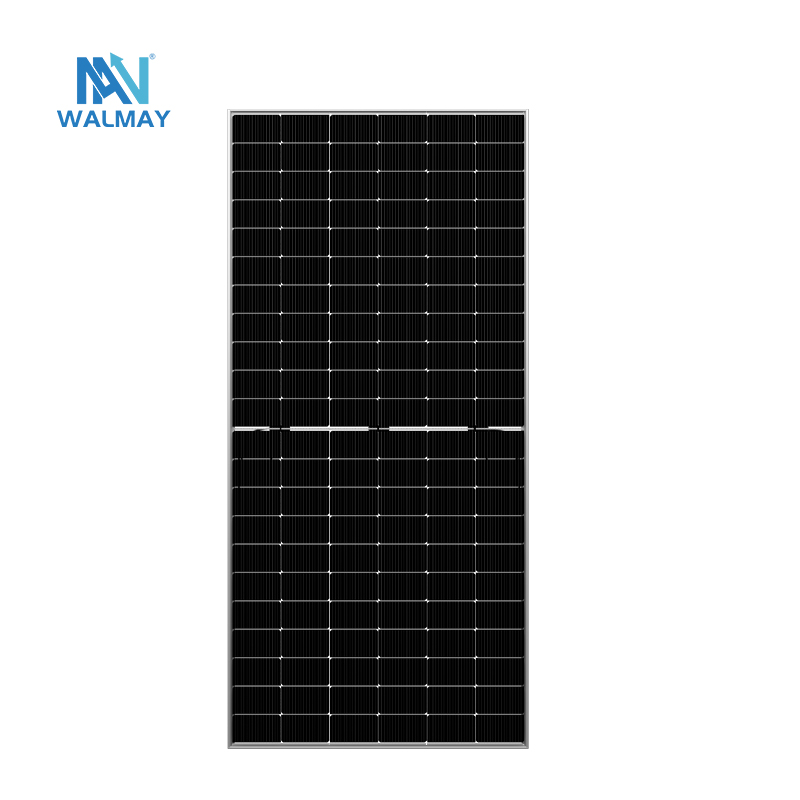

610-630 Walt Mono Half-Cell PV Module

SMBB Technology Half Cut N Type Cell;
Strengthened Mechanical Load;
100% Inspection 30 years Guarantee;
Advanced Bifacial Efficiency;
610-630 Watt 210*182mm 16BB PV Module ;
Fire Class A

+86 13287510939

+86 13287510939

info@walmaygroup.com

610-630 Walt Mono Half-Cell PV Module

Overview

High-power mono half-cell PV modules with power range 610-630W, adopting M12 large-size silicon wafers and multi-busbar technology.

They feature high efficiency, low system cost, and strong environmental adaptability, ideal for large-scale ground stations and industrial/commercial projects .

Walmay Battery Factory Display

Battery energy storage product features



Walmay battery energy storage features

1、High efficiency: Converts up to 22.5% of sunlight into electricity, with half-cell design cutting power loss by 75% .

2、Stable performance: Temperature coefficient as low as -0.29%/℃, works normally from -40℃ to 85℃ .

3、Durable structure: 2+2mm double glass with AR coating, resists salt spray, sand, and mechanical loads (front 5400Pa) .

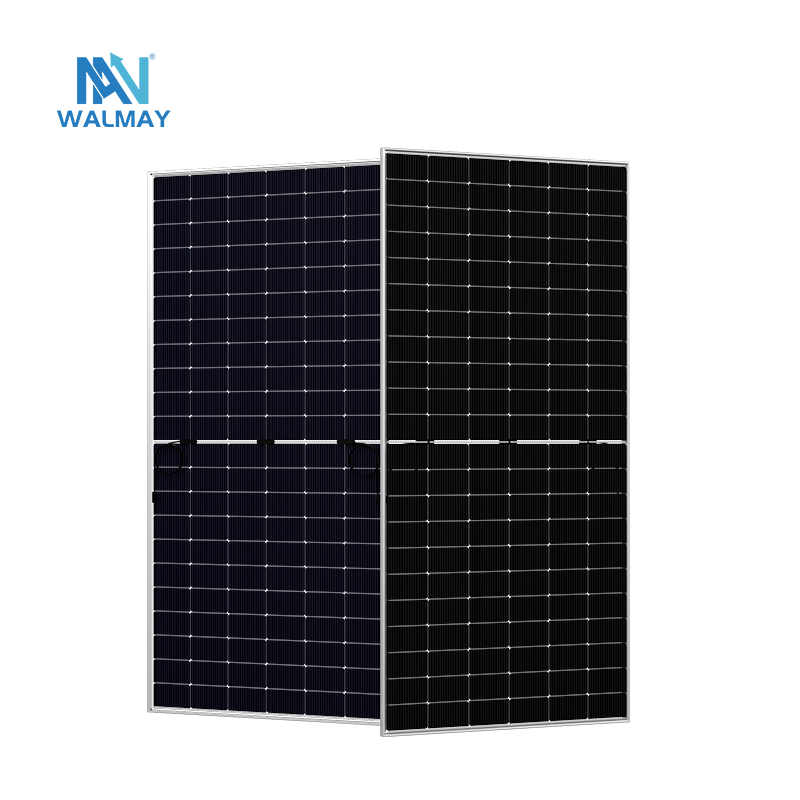

4、Bifacial gain: Rear-side power gain 5%-25%, boosting total electricity output significantly .



Walmay battery energy storage important attributes

Electrical Characteristics Table

Parameter Name	SKT610M12-132D4		SKT615M12-132D4		SKT620M12-132D4		SKT625M12-132D4		SKT630M12-132D4		NMOT
Test Conditions	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT	475.7
Maximum Power (Pmax) (W)	610	460.7	615	464.4	620	468.2	625	471.9	630	475.7	47
Open-Circuit Voltage (Voc) (V)	48.7	46.24	48.9	46.43	49.1	46.62	49.3	46.81	49.5	47	13.08
Short-Circuit Current (Isc) (A)	15.95	12.88	16.01	12.93	16.07	12.98	16.13	13.03	16.19	13.08	38.59
Voltage at Pmax (Vmp) (V)	40.48	37.92	40.62	38.1	40.76	38.25	40.91	38.42	41.04	38.59	12.33
Current at Pmax (Imp) (A)	15.07	12.15	15.14	12.19	15.21	12.24	15.28	12.28	15.35	12.33	/
Module Efficiency (ηm) (%)	22.6	/	22.8	/	23	/	23.1	/	23.3	/	/
Power Tolerance (W)	0~+5	/	0~+5	/	0~+5	/	0~+5	/	0~+5	/	/
Maximum System Voltage (V)	1500Vdc (IEC/UL)	/	1500Vdc (IEC/UL)	/	1500Vdc (IEC/UL)	/	1500Vdc (IEC/UL)	/	1500Vdc (IEC/UL)	/	/

Mechanical Specifications Table

Parameter Name	Specification
External Dimensions (L×W×H) (mm)	2382×1134×30
Weight (kg)	32.4
Solar Cells	N-Type 16BB 182×105mm (2×66pcs)
Glass	AR Coated 2+2mm Tempered Glass
Frame	Anodized Aluminum Alloy
Junction Box	IP68
Output Cables	4.0mm², 1200mm (+), 1200mm (-), Length Customizable
Connector	MC4 Compatible
Mechanical Load	Front: Max. 5400Pa; Rear: Max. 2400Pa

Bifacial Output Table (SKT630M12-132D4 as Example)

Parameter Name	5% Gain	10% Gain	20% Gain
Maximum Power (Pmax) (W)	661.5	693	756
Open-Circuit Voltage (Voc) (V)	49.5	49.5	49.5
Short-Circuit Current (Isc) (A)	16.81	17.6	19.2
Voltage at Pmax (Vmp) (V)	41.04	41.04	41.04
Current at Pmax (Imp) (A)	16.12	16.89	18.42



Why choose Walmay battery energy storage

Cost-saving: Reduces 8%-12% system cost by fewer components, brackets, and cables .
Low risk: 100% inspection before delivery, with minimal hot spot and cracking risks .
Easy maintenance: Compatible with mainstream inverters, supporting string-level monitoring .
Policy-aligned: Meets "high-efficiency component" requirements for global renewable energy projects .

Product Application

Large-scale ground photovoltaic power stations .
Industrial and commercial rooftop distributed systems .
Solar farms in harsh environments (deserts, coastal areas) .
Renewable energy projects supported by global green policies .

- storage system packaging and transportation -

WALMAY has a stock of common energy storage products. The packaging standards meet the international transportation requirements of energy storage products to ensure transportation safety.
