Solar Panel
Shanghai Walmay Group Co., Ltd.

  • 200W Portable Foldable Solar Panel
  • 200W Portable Foldable Solar Panel
  • 200W Portable Foldable Solar Panel
  • 200W Portable Foldable Solar Panel
  • 200W Portable Foldable Solar Panel

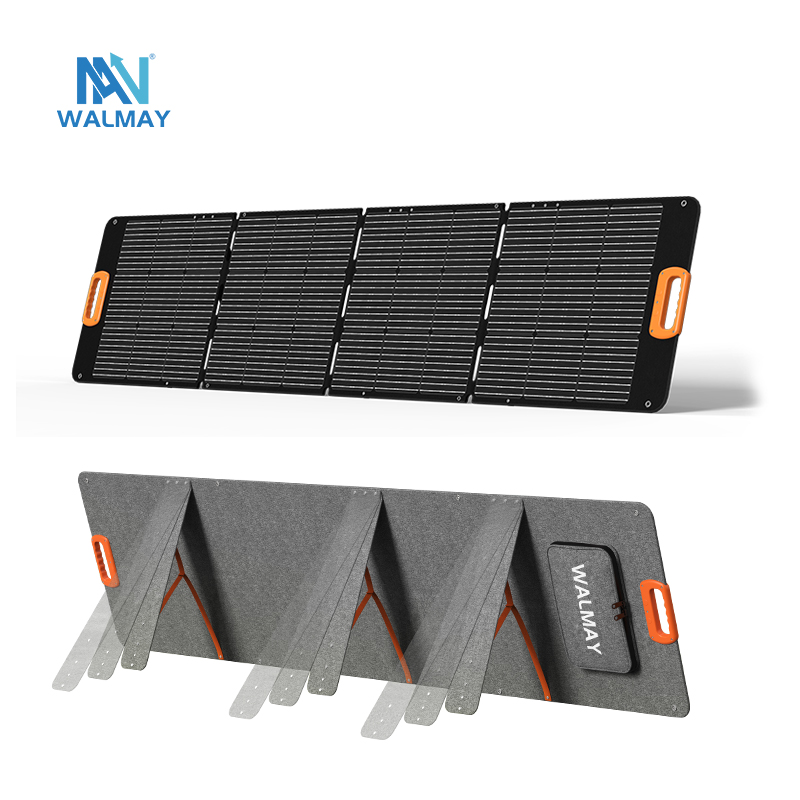

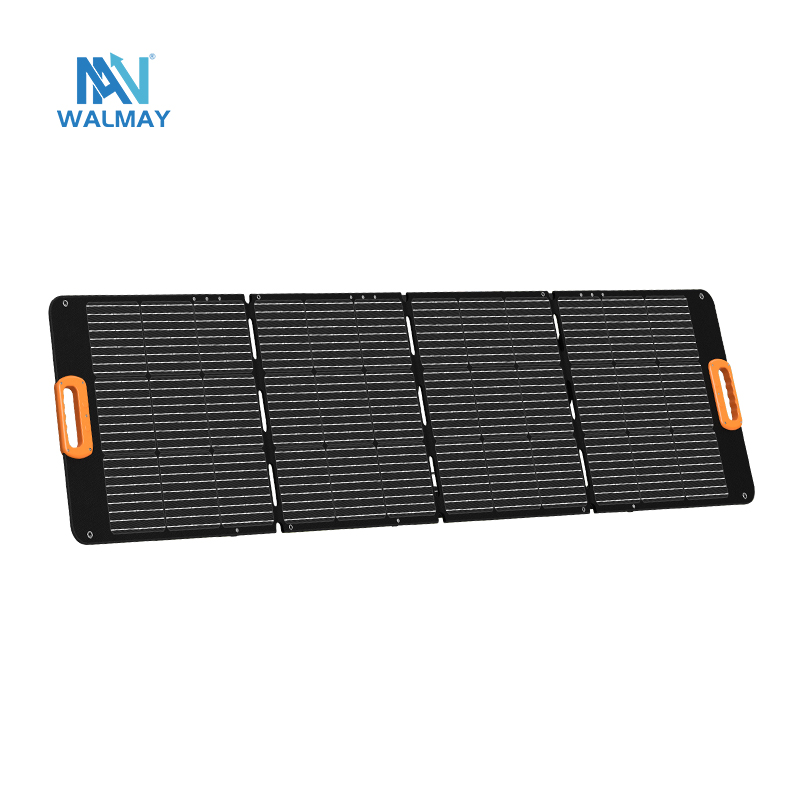

200W Portable Foldable Solar Panel
Portable Foldable Solar Panel ;
IP67 waterproof rating;
200W max power;
22.6% cell efficiency;
ETFE lamination with ≥95% light transmittance ;
weighs only 6kg (net weight).
+86 13287510939
+86 13287510939
info@walmaygroup.com
Contact Us
200W Portable Foldable Solar Panel
Overview

Walmay 200W Portable Foldable Solar Panel (Model: Solar Epoch 200) is a lightweight, foldable solar product for outdoor and emergency use.

It uses high-efficiency monocrystalline silicon cells, with 200W max power and IP67 waterproof rating, easy to carry for camping, RV trips and home backup.


     Walmay Battery Factory Display
walmay_battery_factory_display (5)
walmay_battery_factory_display (6)
walmay_battery_factory_display (4)
walmay_battery_factory_display (3)
walmay_battery_factory_display (1)
walmay_battery_factory_display (2)
Battery energy storage product features

Walmay battery energy storage features

1、High Efficiency & Foldable: 22.6% cell efficiency, 4-fold design reduces size to 590×586×17mm when folded, easy to store.

2、Strong Waterproof: IP67 rating, works normally in rain or damp environments without water damage.

3、Wide Compatibility: MC-4 connector fits Anderson/XT60/DC5521/Aviation M16 ports, matching most energy storage devices.

4、Durable Material: ETFE lamination with ≥95% light transmittance, anti-scratch and anti-aging for long use.


Walmay battery energy storage important attributes

CategoryParameter NameSpecification
Basic ParametersModelSolar Epoch 200

Cell TypeHigh Efficiency Monocrystalline Silicon

Nominal Power (Pmax)200W

Cell Efficiency22.60%

Folding Number4
Electrical PerformanceMax Power Voltage (Vmp)18.00V

Max Power Current (Imp)11.10A

Open-Circuit Voltage (Voc)20.40V

Short-Circuit Current (Isc)11.99A

ETFE Light Transmittance≥95%
Physical & DurabilityFolded Dimensions (L×W×H)590×586×17mm (23.23×23.07×0.67 inch)

Unfolded Dimensions (L×W×H)2210×586×2mm (87.01×23.07×0.08 inch)

Net Weight6kg (13.23 lbs, excluding cables/bag/iron frame)

Gross Weight9.8kg (21.61 lbs)

Waterproof RatingIP67

Operating Temperature-20℃~+60℃
Connection & WarrantyAdaptor CableMC-4 Connector (fits Anderson/XT60/DC5521/Aviation M16)

Warranty12 Months

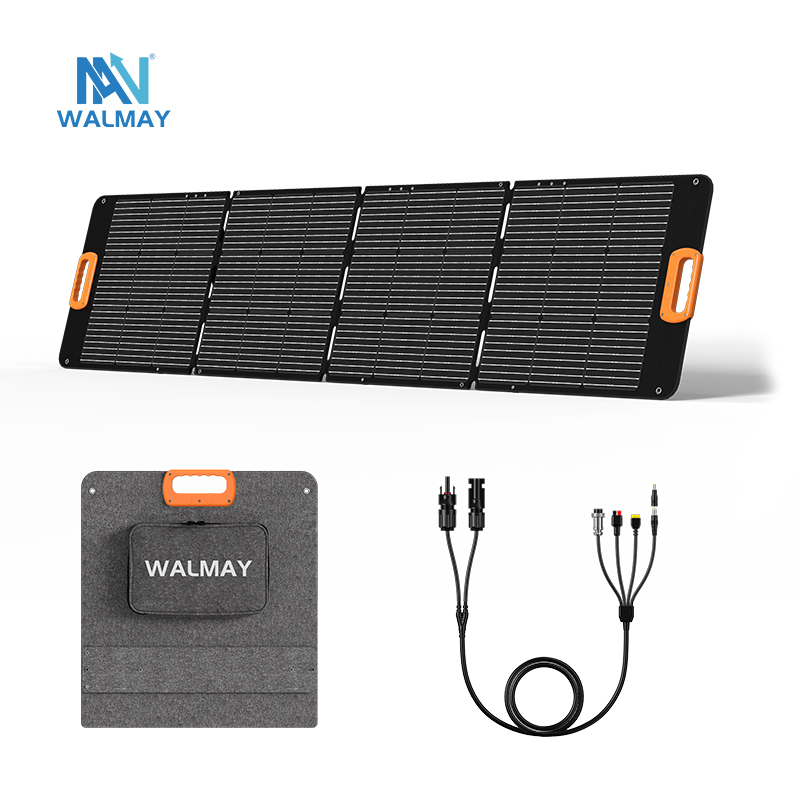

Packing Details200W Solar Panel×1, 1-to-4 Connection Cable×1, User Manual×1, Inner/Outer Cardboard Box×1 each, Pearl Cotton Lining×2


Why choose Walmay battery energy storage

1、Easy to Carry: Light net weight (6kg) and foldable design, easy to take for outdoor trips without extra burden.2、Low Maintenance: ETFE surface is easy to clean; no frequent maintenance needed, saving time and effort.3、Safe to Use: IP67 waterproof and wide temperature adaptation, no safety risks in harsh environments.4、Cost-Effective: 12-month warranty + complete accessories (1-to-4 cable included), no need to buy extra parts.


 Product Application

1、Outdoor Camping: Powers tents, lights, and small appliances like mini-fridges during camping.

2、RV Trips: Charges RV batteries, supporting air conditioners and cooking equipment on the road.

3、Home Emergency Backup: Supplies power for lights and mobile phones during home power outages.

4、Field Work: Provides energy for radios, cameras, and measuring tools for field workers.


200w_portable_foldable_solar_panel_application




-  storage system packaging and transportation  -

WALMAY has a stock of common energy storage products. The packaging standards meet the international transportation requirements of energy storage products to ensure transportation safety.

storage_system_packaging_and_transportation (1)

- Warehouse inventory

storage_system_packaging_and_transportation (2)

- Products that customers

storage_system_packaging_and_transportation (3)

- Storage product loading
