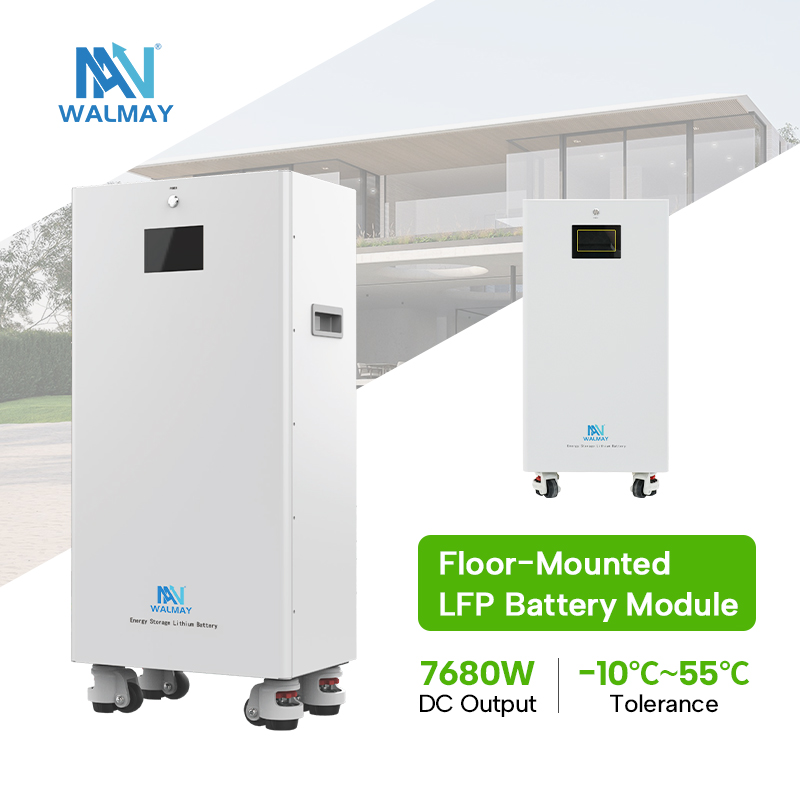

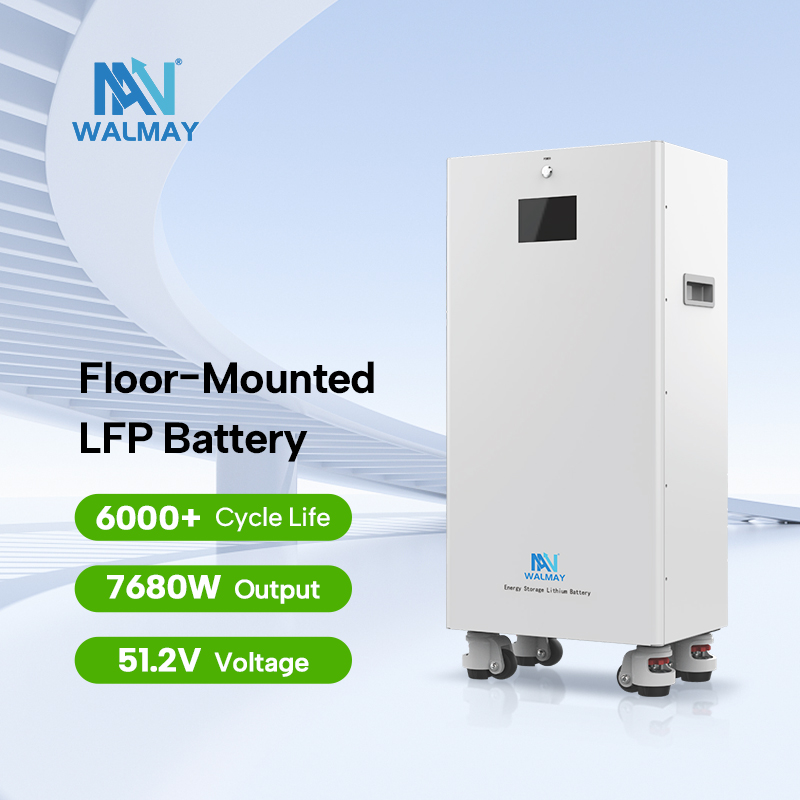

16kWh LFP Floor-Mounted Battery Module
LFp Battery Technology, Enhanced Safety Assurance.

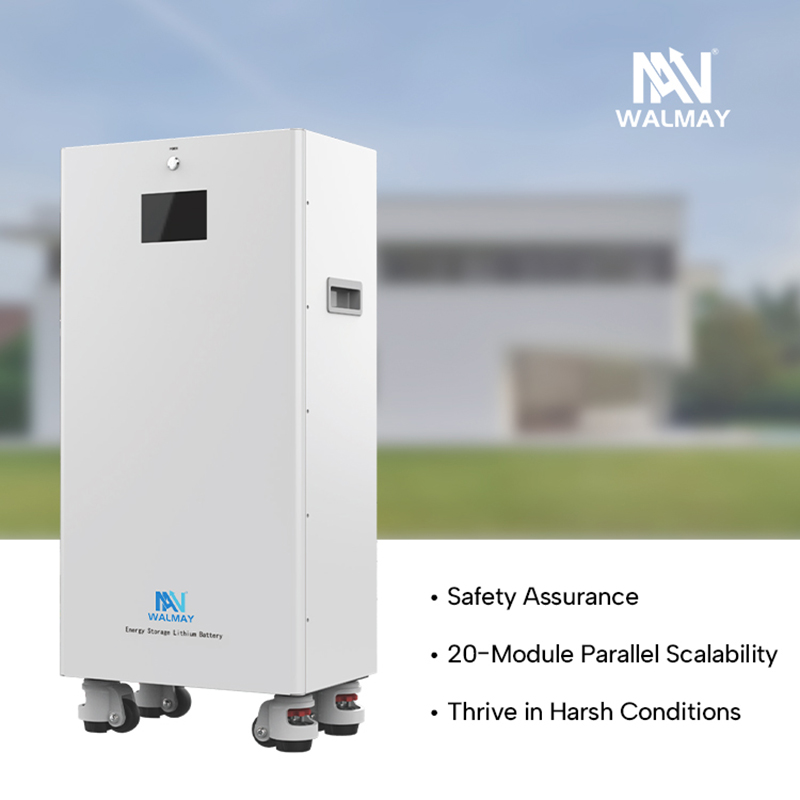

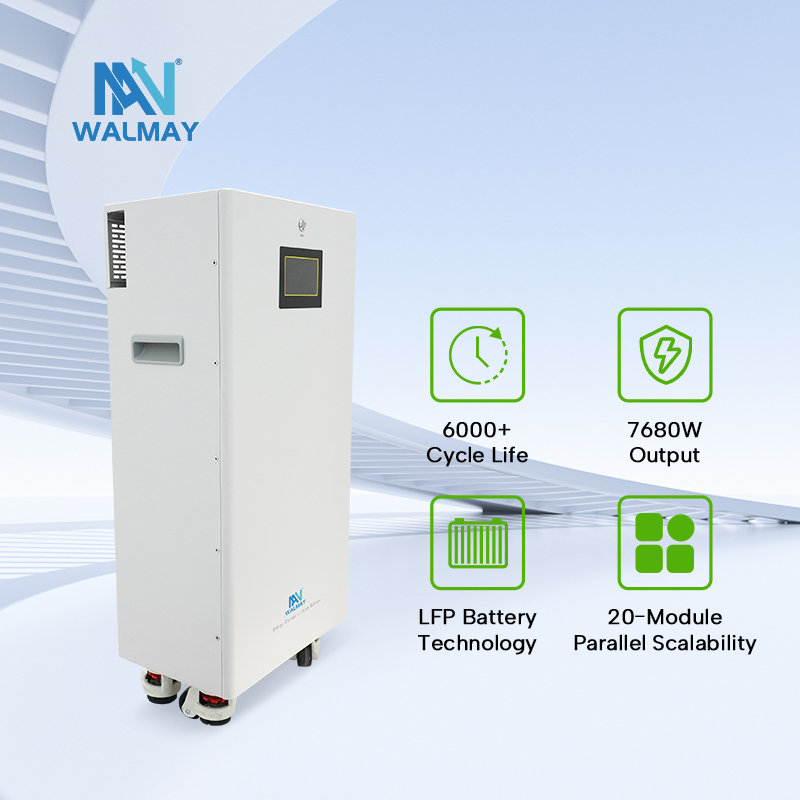

20-Module Parallel Scalability, Expand as Needs Grow.
7680W High-Power Output, Support Heavy Loads Seamlessly.
10°C to 55'C Tolerance, Thrive in Harsh Conditions.
+86 13287510939
+86 13287510939
info@walmaygroup.com
Contact Us
16kWh LFP Floor-Mounted Battery Module
Overview

Walmay LFP Floor-Mounted 16kWh Mobile Energy Storage is a household-focused high-capacity energy storage device. It uses LFP cells, with 16kWh capacity and 51.2V voltage. The floor-mounted design saves space. It supports parallel expansion and harsh environment adaptation, fitting home PV matching and emergency backup needs.

     Walmay Battery Factory Display
walmay_battery_factory_display (5)
walmay_battery_factory_display (6)
walmay_battery_factory_display (4)
walmay_battery_factory_display (3)
walmay_battery_factory_display (1)
walmay_battery_factory_display (2)
Battery energy storage product features

Walmay battery energy storage features

  1. High Capacity for Households: 16kWh capacity meets 24/7 power needs of large families, powering air conditioners and refrigerators.
  2. Space-Saving Floor-Mounted Design: Compact size (395×243×830mm) fits home corners, no extra installation space needed.
  3. Parallel Expansion: Up to 20 modules in parallel, expanding capacity to adapt to growing energy demands.

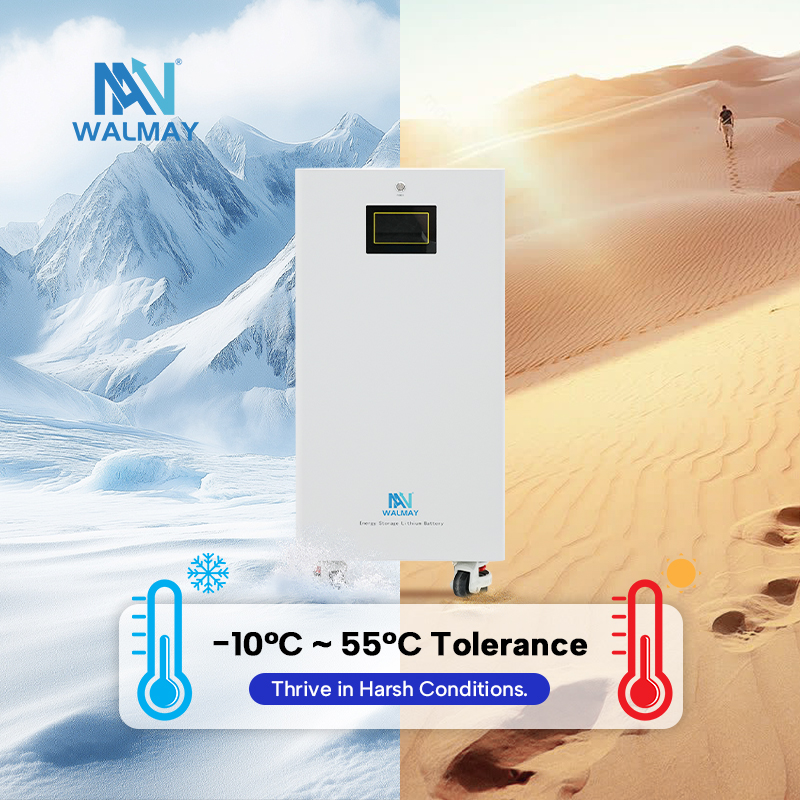

  4. Wide Temp Adaptation: Works in -10℃~55℃, stable performance in summer heat and winter cold.


Walmay battery energy storage important attributes

Parameter NameSpecificationParameter NameSpecification
ModelFN310Recommended DoD95%
Cell TypeLithium Iron Phosphate (LFP)Module Connection1-20 in Parallel
Nominal Capacity16kWhCharge Temperature0~55℃
Nominal Voltage51.2VDischarge Temperature-10~55℃
Cell Capacity314AhCycle Life＞6000 Cycles
Operating Voltage Range44.8~57.6VDimensions (L×W×H)395×243×830mm
Max Charge/Discharge Current100A/100AWeight~117.5kg
Output Power7680WCommunication ProtocolCAN/RS485


Why choose Walmay battery energy storage

  1. Long-Term Cost Saving: ＞6000 cycles life means 10+ years of use, reducing replacement costs. 95% DoD maximizes energy use.
  2. Safe for Home Use: LFP cells have high safety. Overcharge/overheat protection avoids risks for families with kids.
  3. Easy Installation & Maintenance: Floor-mounted design needs no wall drilling. Modular structure allows quick faulty part replacement.
  4. Global After-Sales Support: 7×24h service via Walmay’s 50+ country network. 5-year warranty ensures worry-free use.


 Product Application
  1. Home PV Energy Storage: Stores surplus rooftop PV power, reducing grid electricity bills.
  2. Household Emergency Backup: Powers refrigerators, lighting and medical devices during power outages.
  3. Large Family Daily Power Supply: Supports simultaneous use of air conditioners, washing machines and electric cookers.
  4. Rural Home Energy Supply: Provides stable power for rural households with unstable grid access.

-  storage system packaging and transportation  -

WALMAY has a stock of common energy storage products. The packaging standards meet the international transportation requirements of energy storage products to ensure transportation safety.

storage_system_packaging_and_transportation (1)

- Warehouse inventory

storage_system_packaging_and_transportation (2)

- Products that customers

storage_system_packaging_and_transportation (3)

- Storage product loading
